Description:
Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal.
Available with integral pilot or as remotely piloted valve.Outlet at 90°.
Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Construction
Body: Diecast aluminium or 316
stainless steel
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or fluororubber (reinforced)
Spring: 304 SS
Screws: 302 SS
Outlet Slide Seal: EPDM or fluororubber
Diaphragm Seat: PA-6 (standard), fluororubber
coated mild steel
Refer to Q Series Solenoid product data
sheet for solenoid construction details.
Weights
| Size | Integral Pilot (CA) Kg (lbs) | Remote Pilot (RCA) Kg (lbs) |
| 25 | 1.050(2.31) | 0.830(1.82) |
| 45 | 1.830(4.03) | 1.610(3.55) |

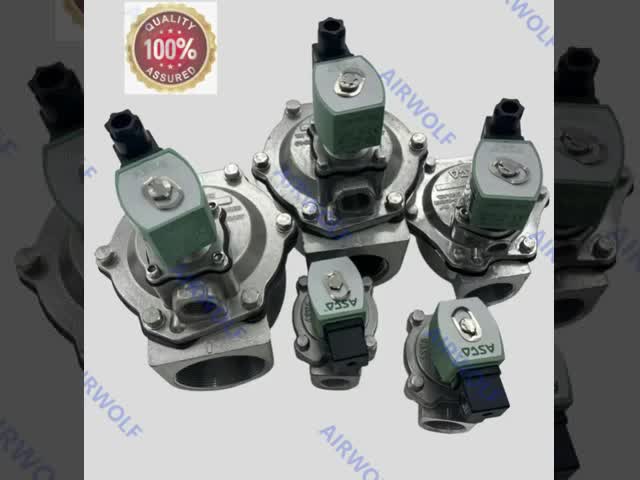

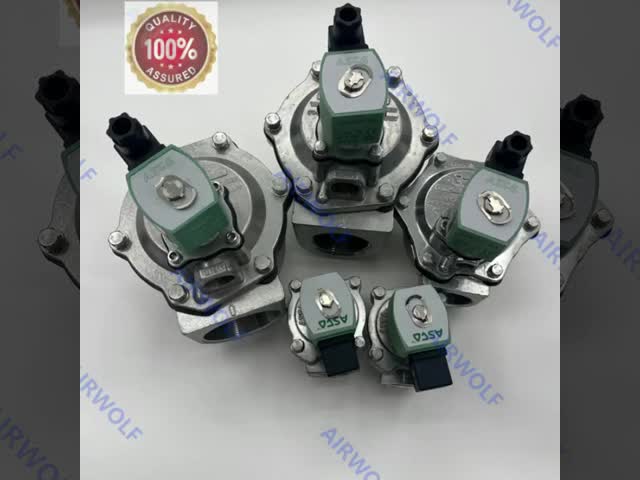

Product pictures:
Installation:
1.Prepare inlet flange and blowtube pipes to suit valve specification.
Avoid installing valves underneath the tank.
2.Ensure tank and Pipes are free from dirt,rust or other particulate.
3.Ensure supply air is clean and dry.
4.Mount valves to inlet flange and blowtube to valves with all seals in place.
Tighten flange bolts to 10Nm(7.4ft-ibs) Ensure blowtube is oushed all the way into the valve outlet.
5.Tanks and pipes must be independently restrained from valve.
6.Make electrical connections to solenoid or connect RCA pilot port to pilot valve.(RCA valve only).
7.Apply moderate pressure to system and check for installation leaks.
8.Fully pressurise system.
9.Test fire and listen for proper actuation and crisp pulse noise.
Valve is not a structural component. Do not rely on valve to retain tanks or pipe. Refer to Camlock product specification for installation details.
*Pipes must be to Schedule 40 outside diameter
| Schedule 40 Size | OD mm | OD Inches |
| 1" | 33.4 | 1.315 |
| 1.5" | 48.3 | 1.900 |
Drawing:
High purity Aluminum Alloy casting body, the top of NBR diaphragm, make the diaphragm has high tensile strength, ageing resistance and low wear, the electromagnetic pulse valve injection is longer than that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in the manufacturing process all checks, qualified and then into the assembly line. Each finished valve is tested by ventilation.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
