Order Codes:
| Type | Port Size | Positions |

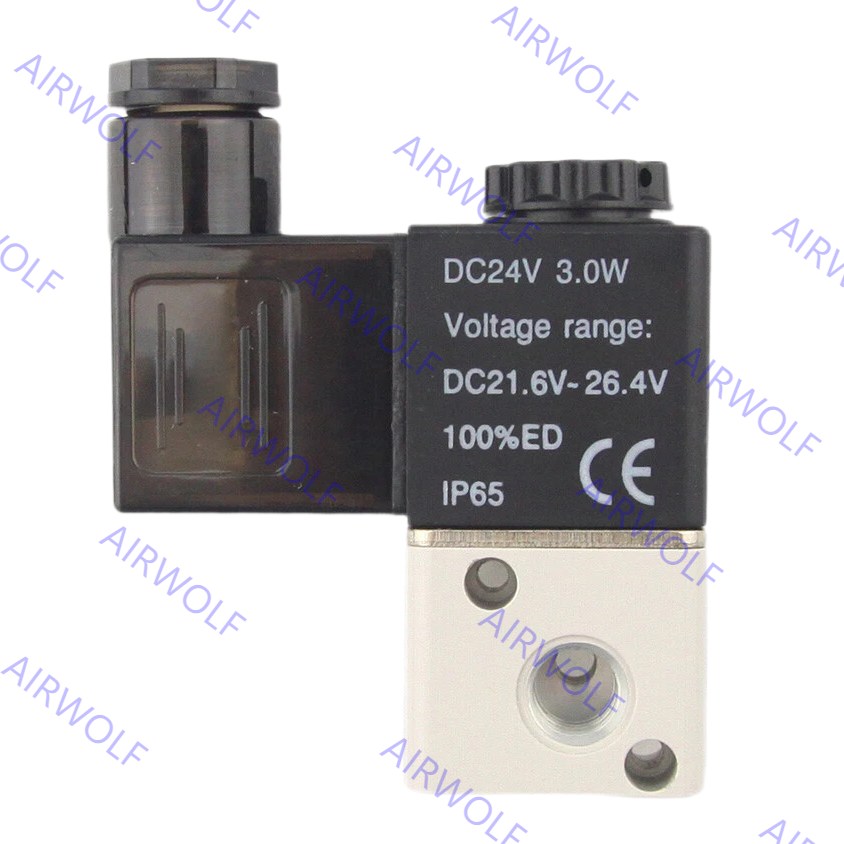

| 3V1-M5 | M5 | 3/2 way |
| 3V1-06 | 1/8" | 3/2 way |
How to Order:
Specification:
| Model | 3V1-M5 | 3V1-06 |
| Port Size | M5 | 1/8" |
| Working Medium | to be filtered by 40μ filter element | |
| Motion Pattern | Direct drive type | |
| Max Ambient Temperature | -10~+60oC | |
| Gas Temperature | 5~60 | |
| Effective Cross Section Area | 1.0mm | |
| Lubrication | Not required | |
| Working pressure | 0~0.8MPa | |
| Max. Test Pressure | 1.2MPa | |
| Power Consumption | AC:5.5VA DC:4.8W | |
| Insulation | F Class | |
| Protection | IP65 | |
| Wiring/Connector | Lead wire or Connector type | |
| Material of Body | Aluminum alloy | |
| Switching frequency | 10 cycle/sec | |
| Operating Voltage Tolerance | -10%~+10% | |
| Response time | 0.05 sec | |
Detailed Demension:
